Type plate laser machine LG200 PL SB50
For all types of signs
You can also visit the nameplate laser machine on our

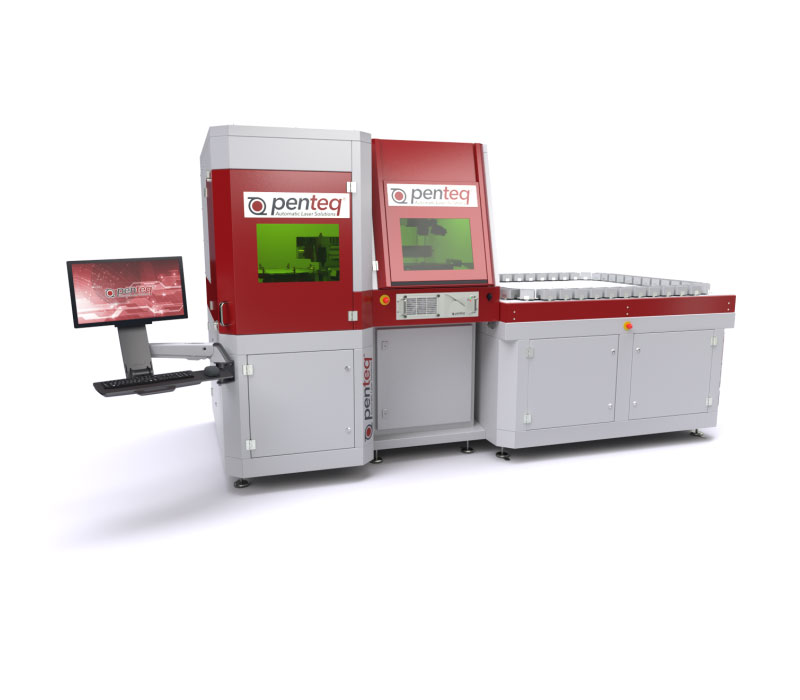

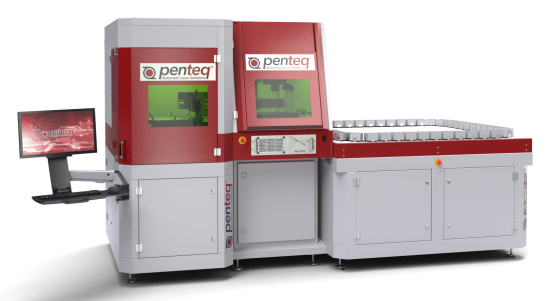

Maximum productivity with the LG 200 PL SB50 nameplate laser machine
Many years of experience in the field of type plate production have been incorporated into the development of the machine and software and have resulted in a system optimised for the labelling of type plates, which is used by leading manufacturers in the industry. The modular design ensures a high degree of flexibility and enables production as a series machine.
Modularity is the central concept of our laser systems and offers you a smart, cost-efficient solution for a wide range of requirements in nameplate production in series production.

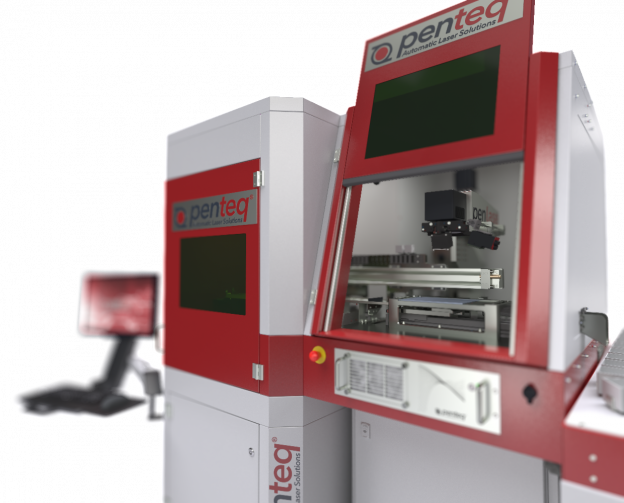

The integrated penlase fiberline is a powerful, air-cooled laser that is characterised by particularly high reliability. It offers the best quality for marking both anodised aluminium signs and stainless steel signs and guarantees the high-contrast creation of barcodes, Data Matrx codes or QR codes for easy readability.
Laser labelling and sorting with maximum capacity
The LG-200 PL SB50 type plate laser machine produces the type plates in the required order and places them in 50 sorting boxes.
An optional vision system checks the codes for legibility based on the AIM-DPM or TR 29158 standard to ensure consistent traceability. The result can be saved with a time stamp.
Complete turnkey solution including software connection

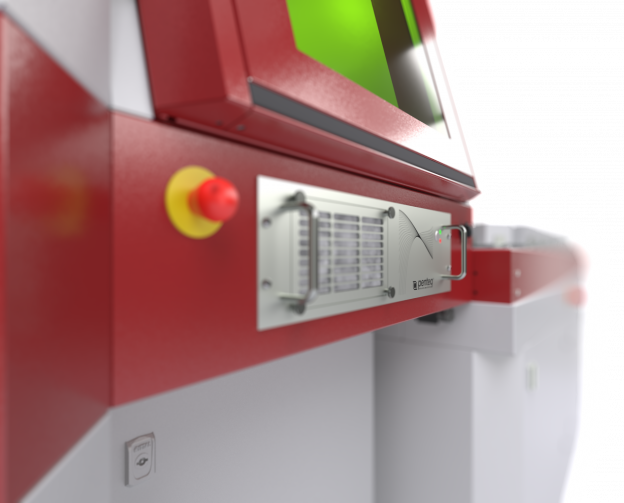

Robust machine frame in welded steel construction with powder-coated sheet steel panelling for many years of industrial use. The basic equipment includes all supply units for the laser, the turret magazine and an extraction unit integrated into the control system.
Easy-to-use software with integrated editor for quickly creating layouts based on Windows 11. Transfer of variable data and layouts from an ERP system via Ethernet, additional functions such as job archive or print job for labels are available.
50 sorting boxes

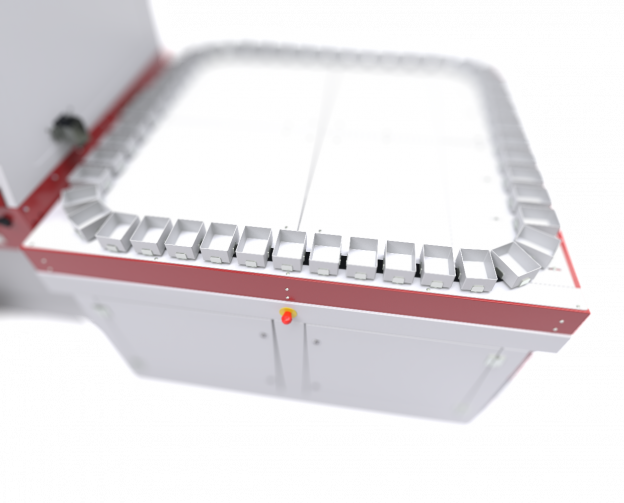

The automatic ring conveyor positions the sorting boxes in the correct position and according to the position selected in the software under the output point for the type plates. This enables order-related sorting of the ready-labelled type plates. If the number of labels exceeds the maximum capacity of the selected sorting box, the order is automatically split between two or more boxes.
The special design of the ring conveyor enables permanent access to the sorting boxes. Rush or test orders can also be produced manually in between. The system also has an automatic front door, which can also be used for labels with special formats.

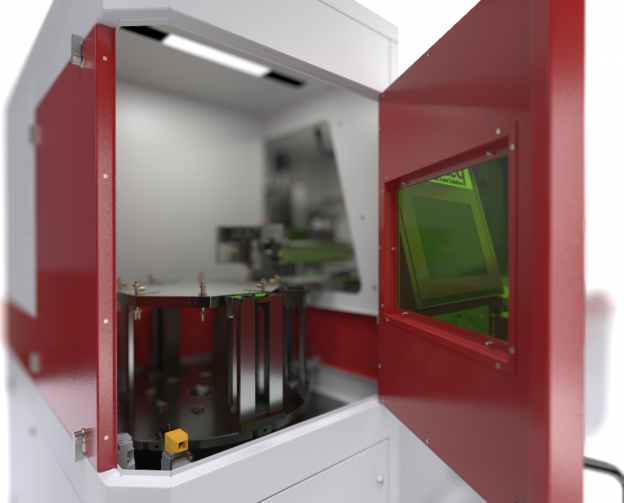

Revolver magazine for various rating plates
The magazines can be changed without tools in just a few moments.
To ensure that the magazines can only be inserted in the correct position, they are designed as poka-yoke. The filling height is 250mm.
The turret magazine positions the selected magazine to the transfer position.
To optimise cycle times, the manoeuvring movements take place during the laser process, thus ensuring the fastest possible processes.
Ready for data exchange
The integrated industrial PC and the Windows-based control system offer the best conditions for seamless integration of the laser system with the user's IT system. Connection to ERP systems is easy to realise thanks to standardised interfaces. The Penteq framework enables customised adaptations for a wide variety of processes.
Small footprint due to compact dimensions

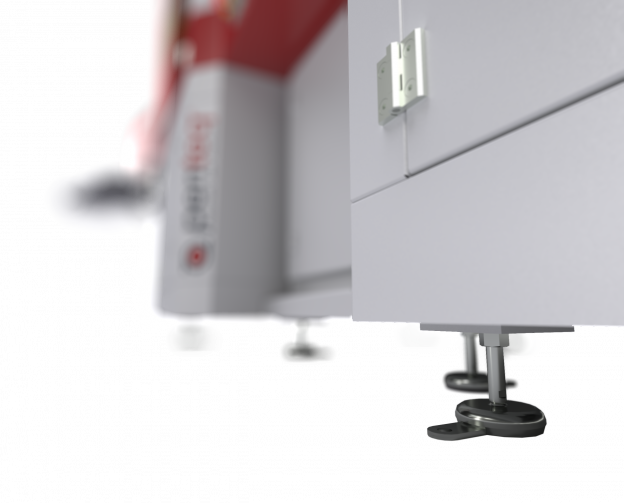

The laser system is equipped with adjustable machine feet for standard hall floors.
The robust design allows easy manipulation using a pallet truck or forklift, and the space-saving design of the all-in-one solution combines all functions in one system
Optimum operability

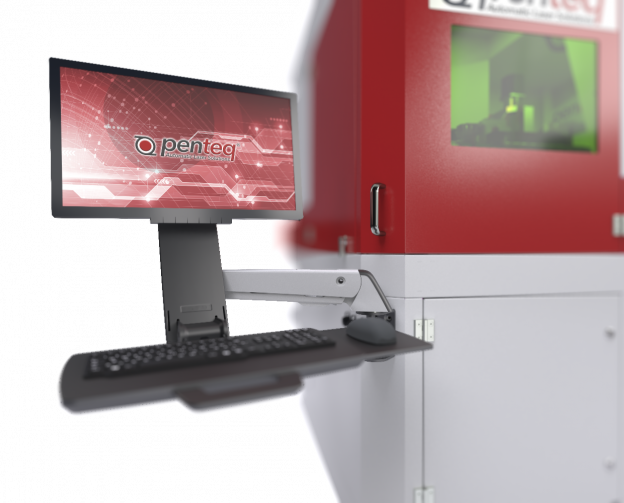

The screen, keyboard and mouse are mounted on an ergonomically height and tilt-adjustable, solid swivel arm.
It is controlled and operated using PenSoft software specially developed for nameplate production, which is easy to use after a short briefing.
Layouts are created using an intuitive editor, which offers all the usual options for creating a perfectly customised layout.
Alternative, manual operating mode
The system can be switched to a manual operating mode to process rush jobs in between. The large automatic front door is then used to load and remove the workpieces to be labelled
The NC-controlled Z-axis is used to adapt to different workpiece heights. This makes it possible to label other plate sizes without a magazine.
| Dimensions | 3000 x 1510 x 1950 mm (LxWxH) without screen |
| Max. Number of magazines | 20 |
| Filling height of the magazines | 250 mm |
| Sorting boxes | 50 |
| Weight of the system | 730 kg |
- Robot sorting
- Ring conveyor for 50 sorting boxes
- Ring conveyor for 25 sorting boxes
- DMC camera
- Vision system
Software
- Pensoft Editor
- Pensoft Connect - ERP connection
- Penteq nameplate software
- Penteq App Development
Accessories
- DMC Camera - VisionSystem Verifier
- Pilot laser
- Laser fume extraction
- Foot switch
- Hand scanner for codes
- touch screen
- LED status light
- Fiberline F20
- Fiberline F30
- Fibreline F50
- UV-Line for plastic cards
