Signolux® Femto
Precision & quality for the highest demands
You can also visit the Signolux UKP on our
The perfect system for exclusive results

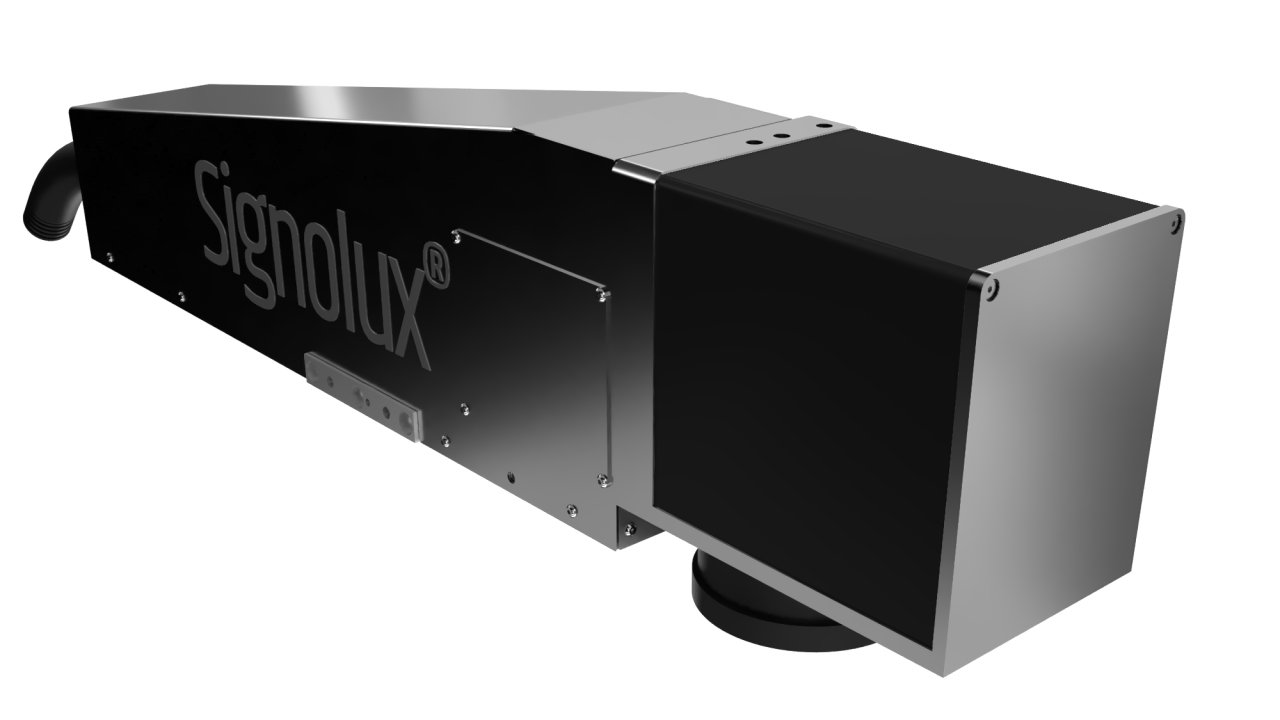

The Signolux® UltraShortPulseLaser is the premium laser system for high-quality labelling and ultra-fine processing of glass, metal or plastic. The innovative UltraShortPulse technology enables precise results with minimal heat influence, making it ideal for applications in medical technology, microstructuring or sensitive cleaning processes.
With the UltraBlackMarking process, the Signolux® creates high-contrast, black markings that are visible from any viewing angle and without compromising corrosion resistance. Thanks to its unique design with a water-cooled rack, the laser remains stable and reliable even under continuous load.
The compact design in 19″ format, combined with the proven Pensoft software, makes the system easy to integrate and intuitive to use.
Unique structure
The supply unit, controller and industrial PC of the Signolux® ultra-short pulse laser are compactly integrated in a 19″ format. All heat-generating components are located in the water-cooled rack, which ensures optimum temperature stability.
Precise machining thanks to "cold" process
Thanks to the cold laser process, the processed materials remain undeformed and their properties unaffected - perfect for demanding applications.
UltraBlackMarking
The process enables deep black, high-contrast markings on stainless steel that also fulfil the highest requirements in medical technology.
User-friendly software
The intuitive Pensoft software makes it easy to create and adapt programmes.
Optional extensions
Expand the Signolux® UltraShortPulseLaser with functions such as 3D processing, positioning laser or laser fume extraction to fulfil even complex requirements.
Signolux® UltraShortPulseLaser - rely on top-class precision
Achieve outstanding results with the Signolux® UltraShortPulseLaser. Whether filigree structures, high-contrast labelling or demanding applications - this system opens up completely new possibilities for you. Contact us and let us advise you individually.
| Leistung (Watt) | 50 |
| Laser Typ | Ultrakurzpuls-Laser (Femtosekunden) |
| Wellenlägne | 1030 nm + / - 10 nm |
| Pulsfrequenz | 60 - 1000 kHz (in Stufen) |
| Arbeitsfeld | 105 x 105 mm (Fokusabstand ca. 194mm) Weitere auf Anfrage |
| Gewicht: Laser / Versorgungseinheit | ca. 20 kg / ca. 30 kg |
| Faserlänge | 2,5 m |
| Kühlung | Wassergekühlt |
| Versorgungsspannung | 230 V 50 Hz |
| Leistungsaufnahme | ca. 900 W |
| Elektrische Schnittstellen | 2 x USB, 1 x Ethernet |
| Software Schnittstellen | TCP/IP (Standard), Profinet, OPC-UA, Ethercat. Weitere nach Abklärung möglich |
| Umgebungstemperatur | +15 bis +35°C |
| Rel. Luftfeuchte | 10% bis 80% (nicht kondensierend) |
| IP-Schutzart | IP 54 |
| Ermittelte Lebensdauer | Typisch über 50.000 Stunden |
| Software | PenSoft Editor |
| Eingabe | Full HD Monitor mit Maus & Tastatur |
| Betriebssystem | Windows 11 |
| Laserklasse | Laserklasse 4 |
