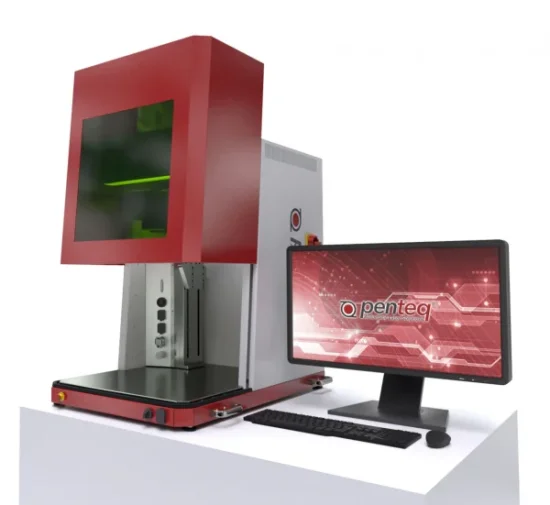

Desktop Laser LG100
Premium table system in industrial laser technology
You can also visit the LG100 desktop laser on our
LG 100 DeskTop laser system
Flexibility and precision for industrial applications
The LG 100 Premium DeskTop laser system was developed to meet the highest demands in terms of efficiency, safety and user-friendliness. The compact system combines powerful laser technology with an innovative door concept. The U-shaped automatic door enables particularly convenient access to the processing area, ideal for fast loading and unloading, even where space is limited. Thanks to its automatic opening and closing function, the door not only contributes to process automation, but also protects the operator with a closed system concept. Combined with an intuitive user interface and optional software connection, this system is the ideal solution for precise laser processing in the smallest of spaces - whether in production, in the laboratory or in the development environment.
Discover the possibilities
Simple and reliable technology.
The development of the LG100 DeskTop laser system focussed on covering a wide range of applications while maintaining small dimensions. The design enables loading with heavier workpieces which is only defined by the table. The robust housing and high-quality components ensure exceptional durability and reliable operation in continuous and shift operation. Rely on quality, safety and efficiency - with the latest generation premium desktop laser system.

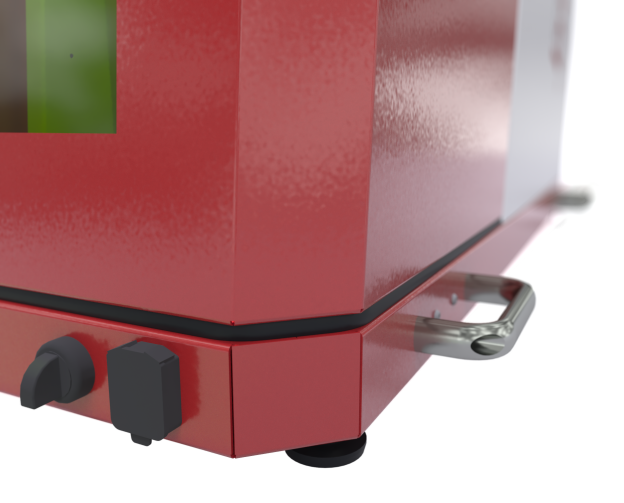

Robust industrial design

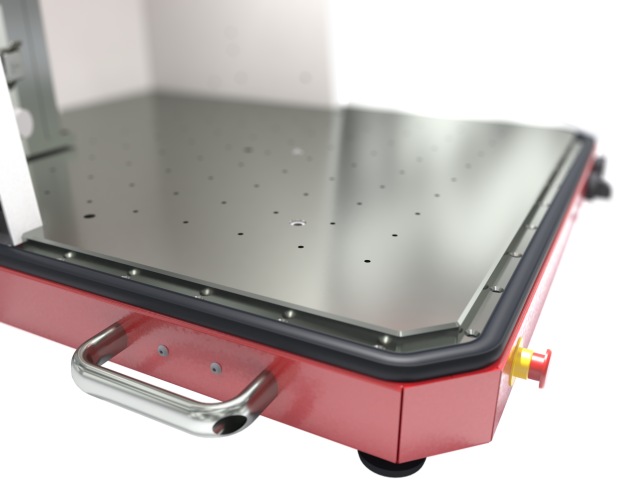

The solid base plate is equipped with a precise hole pattern and hardened bushes, making it ideal for holding fixtures quickly and with repeatable accuracy.
The weight of the workpieces is only limited by the maximum load capacity of the table or base frame.
The protective cabin made of powder-coated steel guarantees stability and durability. Even the basic version of the system contains all the necessary components for smooth operation.

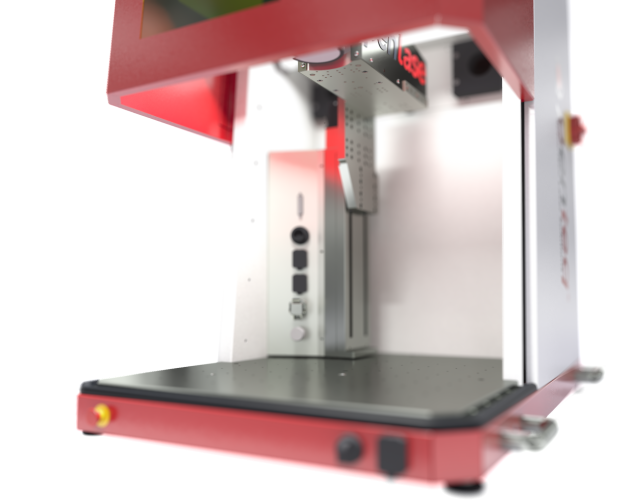

U-shaped automatic door
The user-friendly control system enables use without prior knowledge. Labelling content can be called up quickly and easily by scanning barcodes or QR codes. The innovative, U-shaped automatic door opens and closes fully automatically and, thanks to its special geometry, offers particularly generous and barrier-free access to the work area - ideal for easy insertion of workpieces or handling with devices, even in confined spaces.
Large laser protection window
A generously dimensioned laser safety window provides a safe and at the same time optimum view of the machining process, for maximum control without compromising on work safety. The wide-opening door with integrated laser safety window provides optimum access to the work area and enables safe process monitoring during operation.

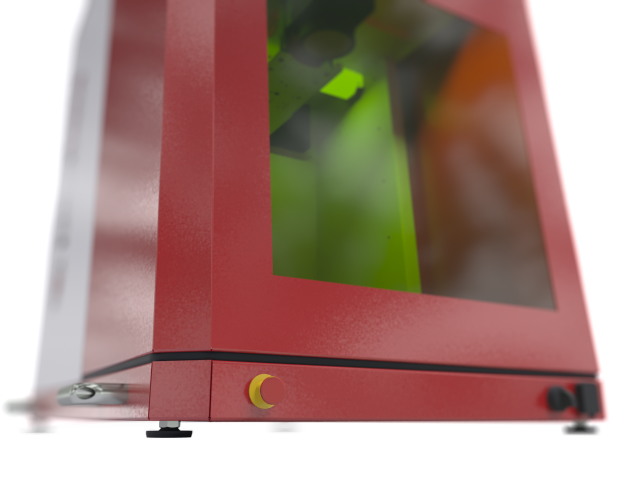

Adjustable machine feet
Adjustable machine feet ensure a secure stand and allow the system to be precisely aligned - even on uneven work surfaces. A stable table is available as an option, which enables ergonomic positioning of the system. This also ensures that all components such as the supply unit and extraction system are neatly stored.
| Workspace | 490 x 285 x 300 mm (WxDxH) |
| Max. Weight of the workpiece per carrier | 50kg |
| Services | 20, 30 and 50 watts |
| Simple field of work | 150 x 150 mm (other sizes on request) |
| Active medium | Ytterbium |
| Dimensions | 600 x 900 x 890 mm (WxDxH) |
| Weight of the system | approx. 150 kg |
| Security | Laser class 1 (with positioning laser LK2) |
- Rotary axis
- PSA (Penteq Smart Adjust)
- Cardmaker
- Table
Software
- Pensoft Control
- Pensoft JobManager
- Penteq App Development
Accessories
- DMC Camera - VisionSystem Verifier
- Pilot laser
- Laser fume extraction
- Foot switch
- Hand scanner for codes
- touch screen
- Bad parts box
- 3-stage status light
- Fiberline F20
- Fiberline F30
- Fiberline F50
The LG100 Premium desktop laser station is equipped with a particularly high-quality, U-shaped automatic door that enables fast, safe and ergonomic loading and unloading of workpieces. The automatic door opening is motorised and is fully integrated into the machine control system. Thanks to the industrial-grade design with stable guide elements, robust drive technology and durable mechanics, the system fulfils the highest requirements for precision and reliability in continuous operation. The U-shaped door geometry allows free access to the entire work area from three sides, thus improving handling, even with larger or bulky components. The automated opening and closing movement significantly reduces manual effort, which not only improves ergonomics but also significantly shortens the cycle time in series production. Compared to manual door solutions, the automatic door saves several seconds per cycle in everyday production. With short processing times, this can mean an increase in productivity of over 40% per shift. At the same time, process reliability is increased as operating errors when opening or closing are ruled out and the safety circuit remains reliably closed at all times. The combination of high-quality components, automated handling and efficient accessibility makes this laser station the ideal solution for demanding labelling processes with high quality and throughput requirements.
Cost-effectiveness comparison: automatic door vs. manual door
| Procedure | Automatic door | Manual door |
| Open door | approx. 1.0 second | approx. 3-5 seconds (depending on the operator) |
| Insert / remove workpiece | Equal | Equal |
| Close door | approx. 1.0-1.5 seconds | approx. 3-5 seconds |
| Total door cycle time | approx. 2-3 seconds | approx. 6-10 seconds |
| Cycle time saving | approx. 3-7 seconds per cycle | - |
Calculation example for 1-shift operation (8 hours, 2,880 seconds productive time at 100% capacity utilisation)
Assumptions: Laser process duration 5 seconds
Workpiece handling (insertion/removal) 4 seconds
Production in cycle operation (i.e. opening, removing, inserting, closing counts per cycle)
| Door | Door time | Total time/cycle | Cycles per hour | Parts per shift (8h) |
| Automatic | 3 sec. | 5 (laser) + 4 (handling) + 3 = 12 sec. | 300 | 2400 parts |
| Manual | 8 sec. | 5 + 4 + 8 = 17 sec. | 211 | 1688 parts |
An automatic door saves a significant amount of time. This saving has a direct impact on the parts output per shift and therefore on profitability. With short processing times per part, the door cycle is a critical bottleneck - this is where automation is particularly worthwhile.
