OEM fibreline High Power
Ready-to-install laser for numerous applications

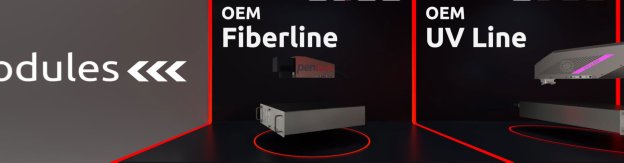

You can also visit the OEM Fiberline on our
Fiberline: A technology with unique advantages

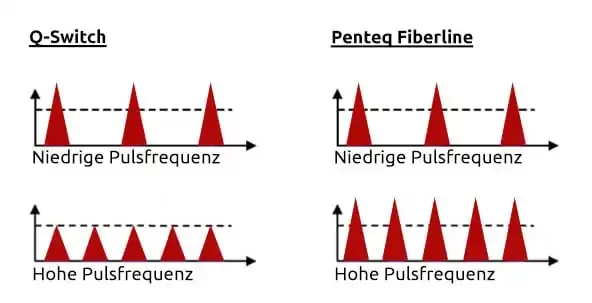

The OEM Fiberline series stands for precision and efficiency in industrial production. Compared to conventional Q-Switch lasers, the Fiberline offers full power from the very first pulse. Its flexible optical fibre connects the compact laser head to the supply unit, allowing even demanding production environments to be served.
Powerful beam source
The diode-pumped Fiberline is air-cooled, energy-saving and offers top performance at a wide range of frequencies - perfect for applications with high precision requirements.
Modular and compact design
The supply unit in 19″ plug-in format makes integration into existing production systems simple and space-saving. The operating unit with screen, keyboard and mouse can be positioned anywhere, allowing it to be optimally positioned.
Simple integration and control
Optional interfaces such as Profinet or OPC-UA ensure the simplest connection and smooth communication. A remote maintenance option enables fast and reliable support.
Intuitive software
The user-friendly software allows intuitive operation without a long familiarisation period. Complete solutions with vision systems or the control of up to 6 axes directly from the Pensoft interface are optionally available.
OEM Fiberline - Your solution for precise laser processing
Rely on the innovative advantages of the OEM Fiberline. Contact us today and find out how this integration system can fulfil your production requirements efficiently and precisely.
| Output power | 20 watts |
| Standard field of work | 150 x 150 mm |
| Fields of work Optional | 50 x 50 to 300 x 300mm |
| Frequency | 20 - 400 kHz |
| Wavelength | 1064 nm + / - 8 nm |
| Working distance approx. | 245mm |
| Power consumption | 310 W |
| Weight approx. (head and supply unit) | 35 kg |
| Output power | 30 watts |
| Standard field of work | 150 x 150 mm |
| Fields of work Optional | 50 x 50 to 300 x 300 mm |
| Frequency | 30 - 400 kHz |
| Wavelength | 1064 nm +/- 8 nm |
| Working distance approx. | 245 mm |
| Power consumption | 420 W |
| Weight approx. (head and supply unit) | 40 kg |
| Output power | 50 watts |
| Standard field of work | 150 x 150 mm |
| Fields of work Optional | 50 x 50 - 300 x 300 mm |
| Frequency | 50 - 400 kHz |
| Wavelength | 1064 nm +/- 8 nm |
| Working distance approx. | 245 mm |
| Power consumption | 500 W |
| Weight approx. (head and supply unit) | 40 kg |
| Output power | 100 watts |
| Standard field of work | 150 x 150 mm |
| Fields of work Optional | 50 x 50 - 300 x 300 mm |
| Frequency | 50 - 400 kHz |
| Wavelength | 1064 nm + / - 4 nm |
| Working distance approx. | 245 mm |
| Power consumption | 850 W |
| Weight approx. (head and supply unit) | 45 kg |
| Output power | 120 watts |
| Standard field of work | 150 x 150 mm |
| Fields of work Optional | 50 x 50 - 300 x 300 mm |
| Frequency | 50 - 400kHz |
| Wavelength | 1064nm+ / -4nm |
| Working distance approx. | 245 mm |
| Power consumption | 850 W |
| Weight approx. (head and supply unit) | 45 kg |
| Positioning laser | to preview the layout on the workpiece as a projection |
| Control | Up to 6 axes from the Pensoft surface |
| 3D function | for curved, angled or free-form surfaces |
| PSA Smart Adjust | to preview the processing in the transparent layout |
| Vision systems | for checking codes or product properties |
| Touch Screen | Direct input via the screen |
| Supply line | Special lengths up to 12 m |
